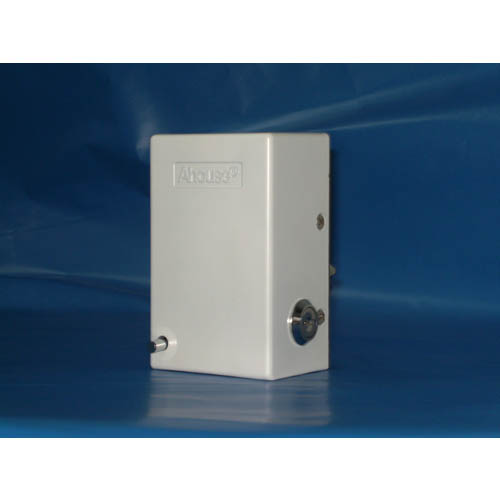

model: ds 218 / wh

rated voltage: dc 24v

materials: aluminum die cast alloy (lock)

cast-iron/ aluminum die casting (lock stopper)

surface: powder coating

manual override: key operated cam lock to enable manual operating

during power failure

dimension: 60*70*118 (mm)

usage: swing gate

bolt pin diameter: 16 mm

working range : 15 mm

pulse to open lock: 3 sec

operating current: 2.5a
